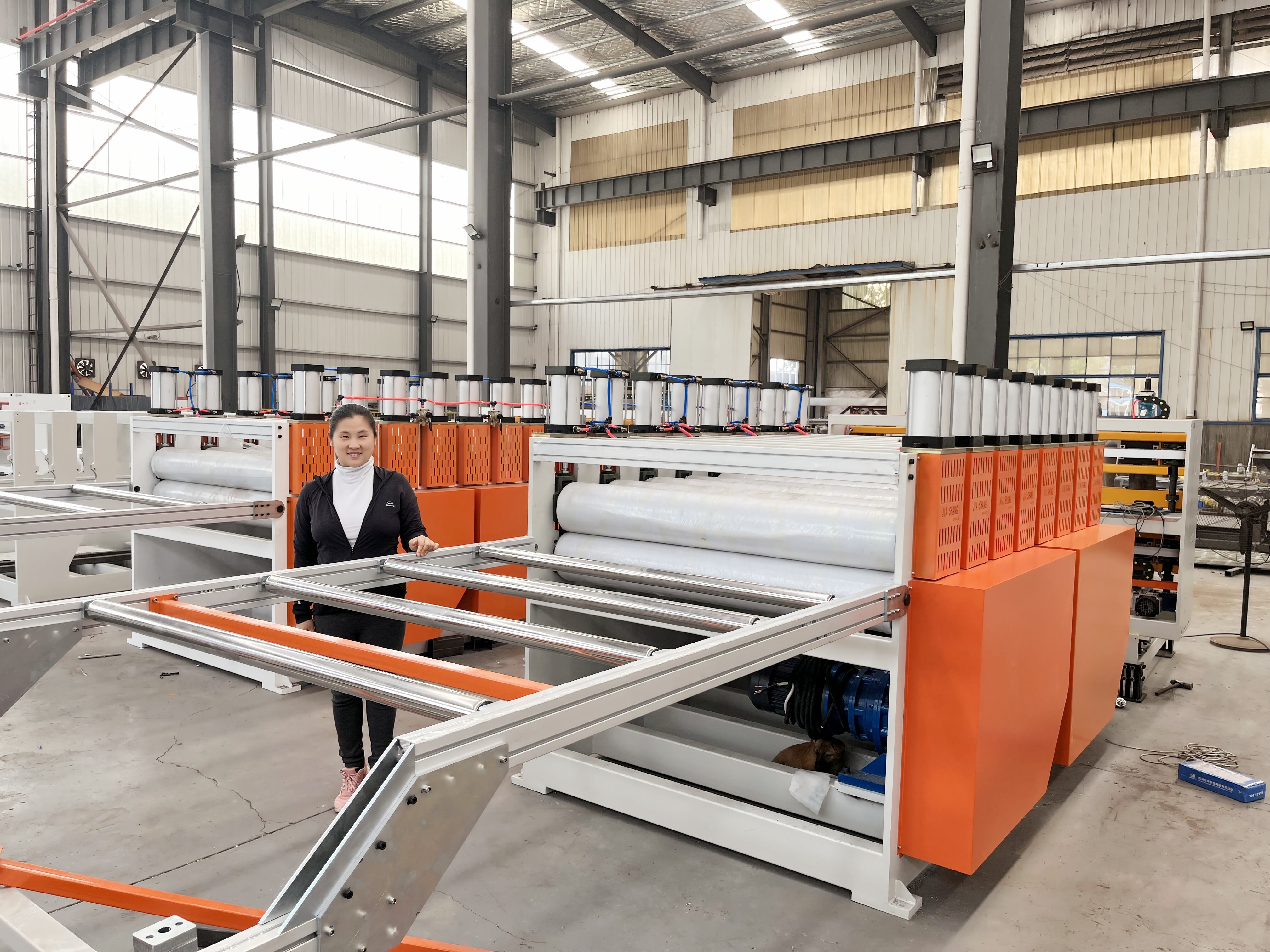

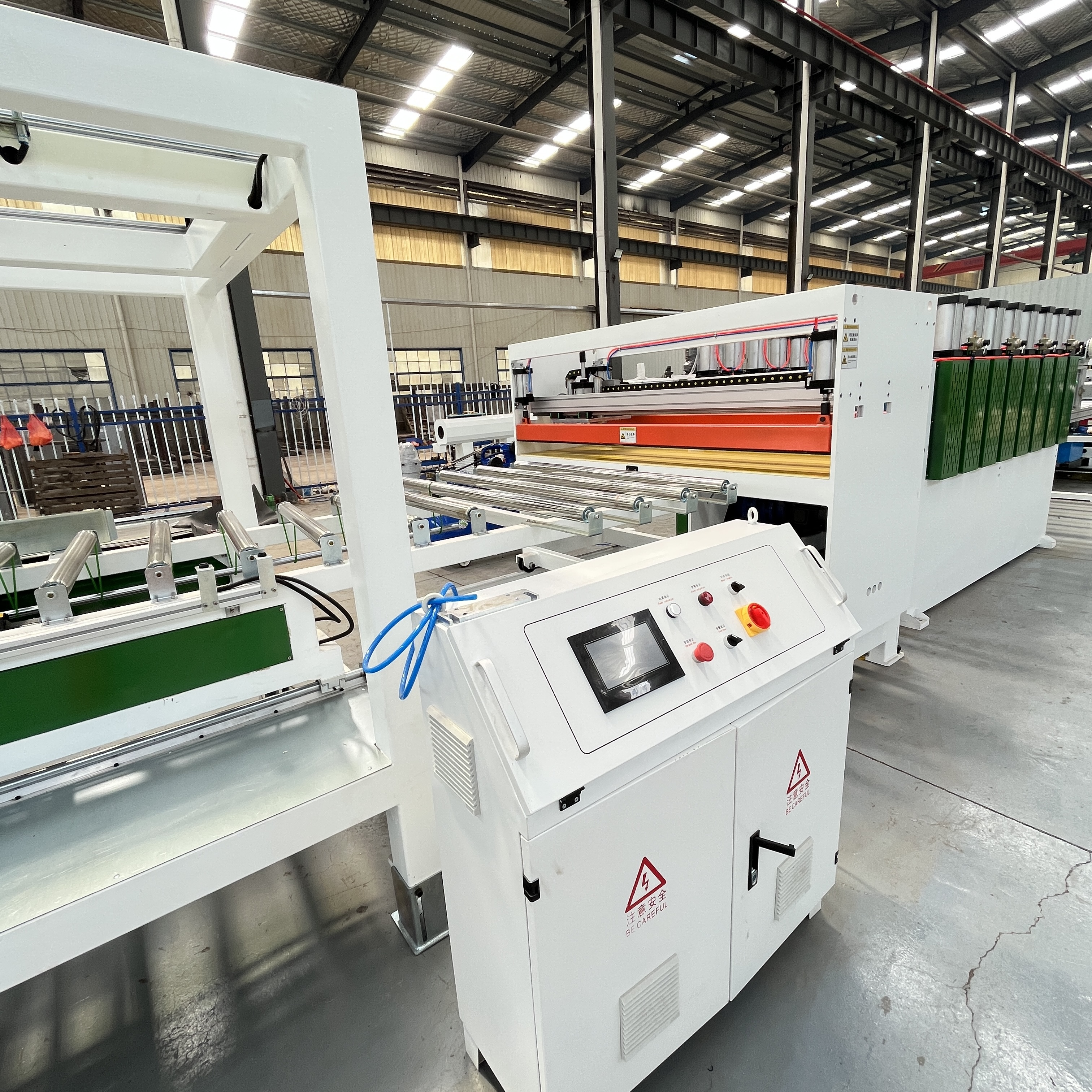

PVC Plastic Foam Board Making Machine
Product Description
1.Application for PVC Plastic Foam Board Making Machine
PVC Foam Board Sheet/Celuka PVC Foam Board/Cabinet Furniture Use PVC Foam Board Custom PVC Foam Sheet
PVC foamed board belongs to the new environmental protection material, called no defect board in foreign countries, and the double post, no oil leakage, no water seepage, scratch resistant, also called blister board, base material of density board, surface by vacuum blister or adopt a seamless and PVC film pressure molding process, green non-polluting, renewable, is the ideal alternative ambry materials, and the people life more convenient, the most suitable. Door plate in normal size without edge, waterproof, moisture-proof, hardness and flexibility.
PVC board has excellent chemical stability, corrosion resistance, high hardness, high strength, anti-uv (aging resistance), fire resistance and flame retardant (with self-extinguishing), reliable insulation performance, smooth surface, not water absorption and deformation, easy processing and other characteristics
2. PVC foamed board belongs to the new environmental protection material, called no defect board in foreign countries, and the double post, no oil leakage, no water seepage, scratch resistant, also called blister board, base material of density board, surface by vacuum blister or adopt a seamless and PVC film pressure molding process
the conical twin-screw extruder has stable performance, which can make the melt plasticize well at a lower temperature. The cast aluminum heater is installed on the cylinder, which has high thermal efficiency, fast and uniform temperature rise, and is equipped with cooling fan.
3. PVC Plastic Foam Board Making Machine list
| No | Name | Type | Quantity | Marks |
| 1.1 | Conical twin screw extruder
With automatic spring feeder |
SJSZ-80/156 | 1set | Equipped with automatic spring feeder |
| 1.2 | Electrical control system | 1set | Delta frequency converter, Siemens contactor | |
| 1.3 | Mould | SJM-1350 | 1set | Oil string device at die port, automatic temperature control |
| 1.4 | Vacuum setting die | SDX-1500 | 1set | 4-stage sizing cooling |
| 1.5 | Hauling off | SQY-1400 | 1set | 8 sets, 16 rolls. |
| 1.6 | Cooling bracket | SJTJ-3000 | 1set | |
| 1.7 | Longitudinal cutting device | SQG-1220 | 1set | |
| 1.8 | Transverse cutting machine | SQG-1220 | 1set | |
| 1.9 | Plate unloading device | SJS-1220 | 1set | |
| PVC Plastic Foam Board Making Machine auxiliary machine | ||||
| 1．10 | Hot and cold mixer | SHR500/1000 | 1set | |
| 1.11 | Crusher | SWP-380 | 1set | |
| 1.12 | Grinder /pulverizer | SMP-630 | 1set | |
FAQ
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the PVC Plastic Foam Board Making Machine?
A: Technical department supply the whole layout for workshop details.
