Plastic Material Mixer Machine
SRL-500/1000 hot and cooling mixer units

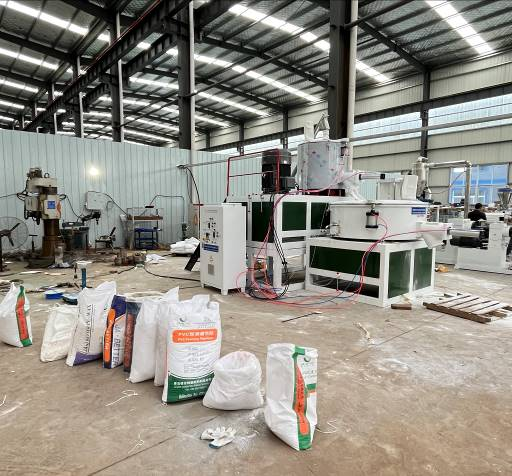

Equipment components:
① hot mixer ② cooling mixer ③screw loader
Technical parameters and related performance of equipment
1. hot mixing part
Total volume of hot mix 510L
Effective volume of hot mix 380L
Feeding quantity per time 180-230kg/ pot
Productive capacity 720-920kg/h
Motor power 75kW
Slurry type Linear three-layer mixed slurry (stainless steel)
Bottom thickness 5mm
Thickness of inner wall of boiler 5mm
Hot mix speed 748 rpm
Mixing time 8-15 min / pot
Temperature during mixing operation ≤150℃
2. cold mixing
Volume of cold mixer 1000L
Effective volume of cold mixing 800L
Motor power 11KW
Reducer model WPO175 1：20
Cold mixed slurry One set of slurry stainless steel
Thickness of inner wall of boiler 5mm stainless steel
Thickness of outer wall of boiler 5mm iron pot
Bottom of pot 5mm stainless steel 8mm iron
Mixing speed 49 rpm
Cooling time 10-15 min / pot
Water supply in the interlayer of the cold mixing boiler Water pressure ≤ 0.3MPa
Water consumption 12 tons / hour (can enter the pool for recycling)
Most suitable discharging temperature ≤45℃
Suitable for water temperature 10-18℃
3. electrical part
Universal frequency converter 75kW,, CHINT or others famous brand Electric Appliance, with heat dissipation and exhaust holes in the electric box
4. unloading method And lid
All pneumatic discharging and pneumatic cover lifting.

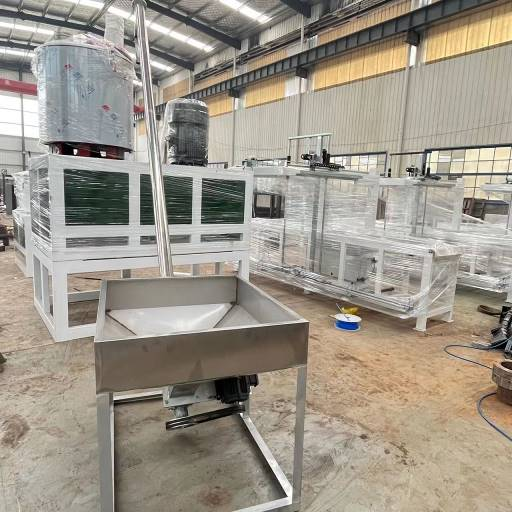

5. the feeding machine adopts screw feeding machine
| Automatic screw loader | |||
| 1 | Transport tube diameter | mm | 102 |
| 2 | Charging motor power | KW | 1.5 |
| 3 | Push material motor power | KW | 0.75 |
| 4 | Storage volume | kg | 150 |
| 5 | Material of storage hopper and tube | / | Stainless steel |
