Wood Plastic Composited Product Making Machine

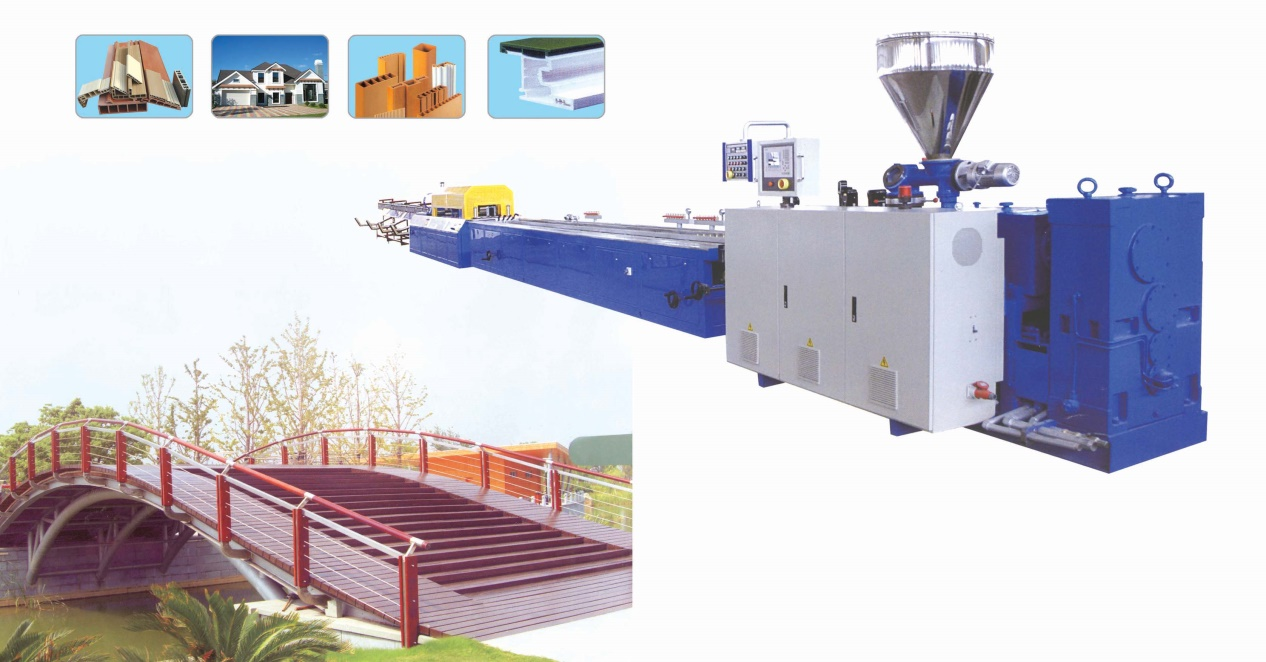

PVC / WPC profile extrusion line mainly use PVC or UPVC or PVC+wood powder to extruder profile such as building partition, cabinet,door panels, window sill, skirting board, door edgeline, door jamb, window shutters, photo frame, mirror frame, furniture edge banding, door frame, door pocket, window pocket, column profile, stair handrail, floor board,decoration cladding panel,furniture,WPC pipes, etc.Crafts Flowing Chart
MAIN TECHNICAL PARAMETERS:
| Type | YF180 | YF240 | YF300 |
| Vacuum degree (map) | -0.08~-0.09 | -0.08~-0.09 | -0.08~-0.09 |
| Center distance of T type dies mounting groove (mm) | 320 | 320 | 460 |
| Height of die mounting base (mm) | 890~1100 | 890~1100 | 890~1100 |
| Move distance of vacuum forming machine (mm) | 5000 | 6000 | 6000 |

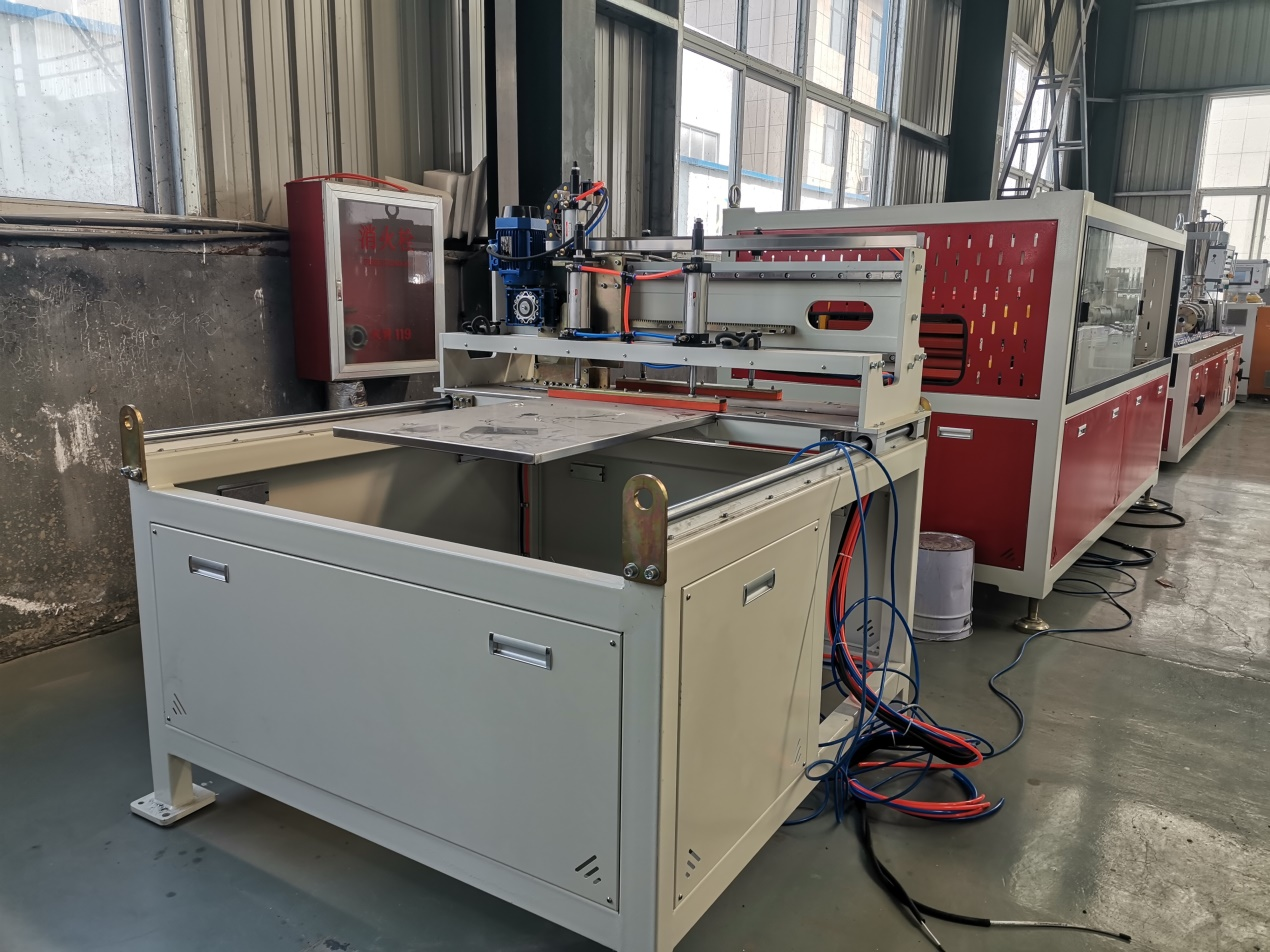

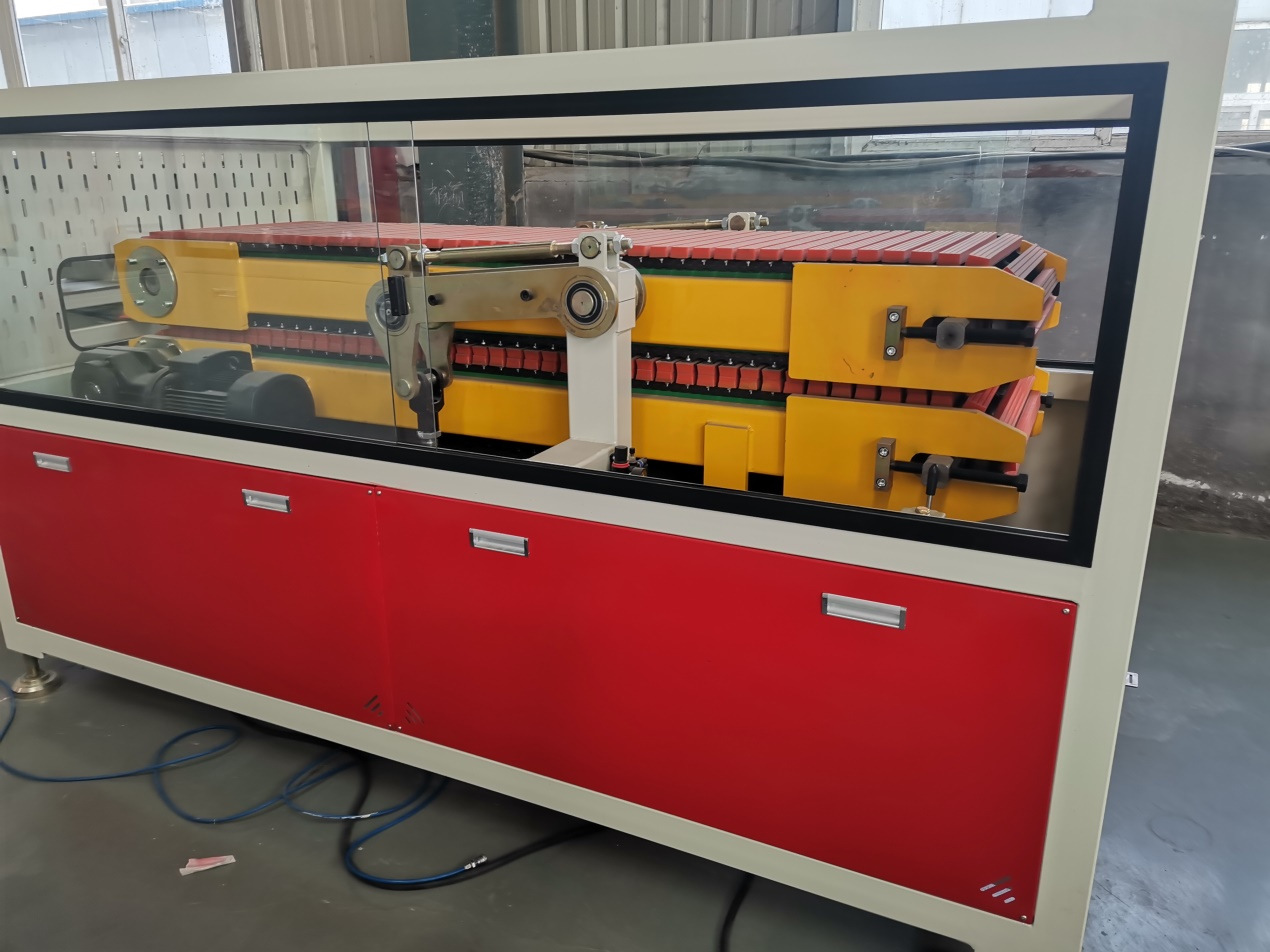

| Hauling speed (m/min) | 0.3~7.8 | 0.1~5 | 0.1~5 |
| Hauling force (kN) | 7.5 | 30 | 35 |
| Effective hauling length (mm) | 1.2 | 1.8 | 1.8 |
| Width of holding bolck (mm) | 180 | 240 | 300 |
| Pedrail open degree (mm) | 110 | 140 | 160 |
| Sawing linear veiocity (m/s) | 58.6 | 58.6 | 58.6 |
| Max Saeable section (mm) | 180*65 | 240*65 | 300*80 |

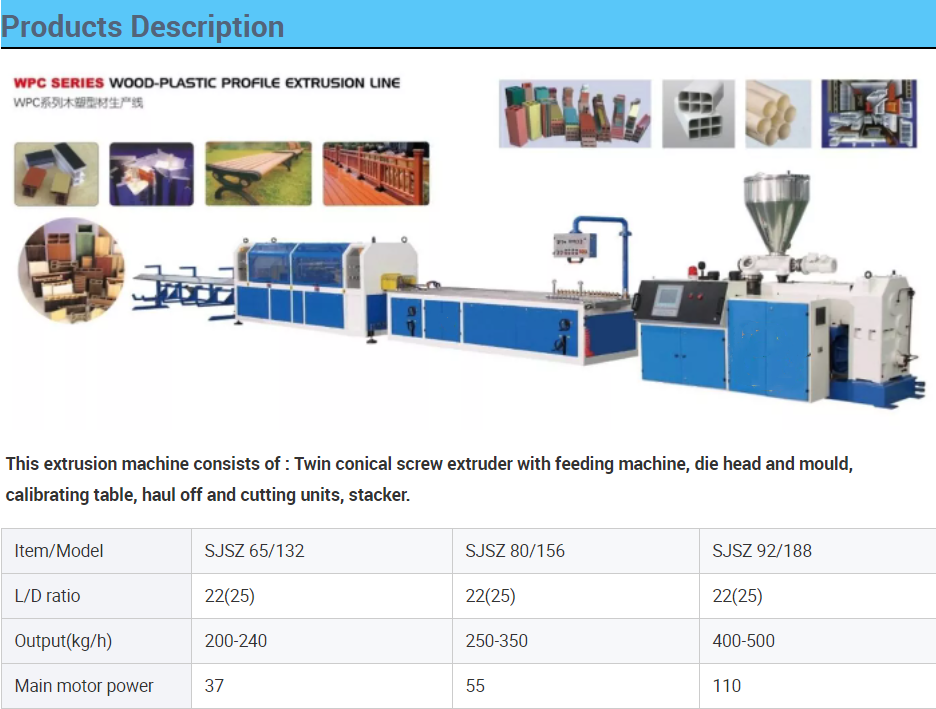

Conical twin screw extruder
• World famous brand electrical component such as Siemens,Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
>> For production of soft PVC profile, rigid PVC profile, soft-hard co-extrusion profile,foam profile extrusion, multi layer co-extrusion etc.

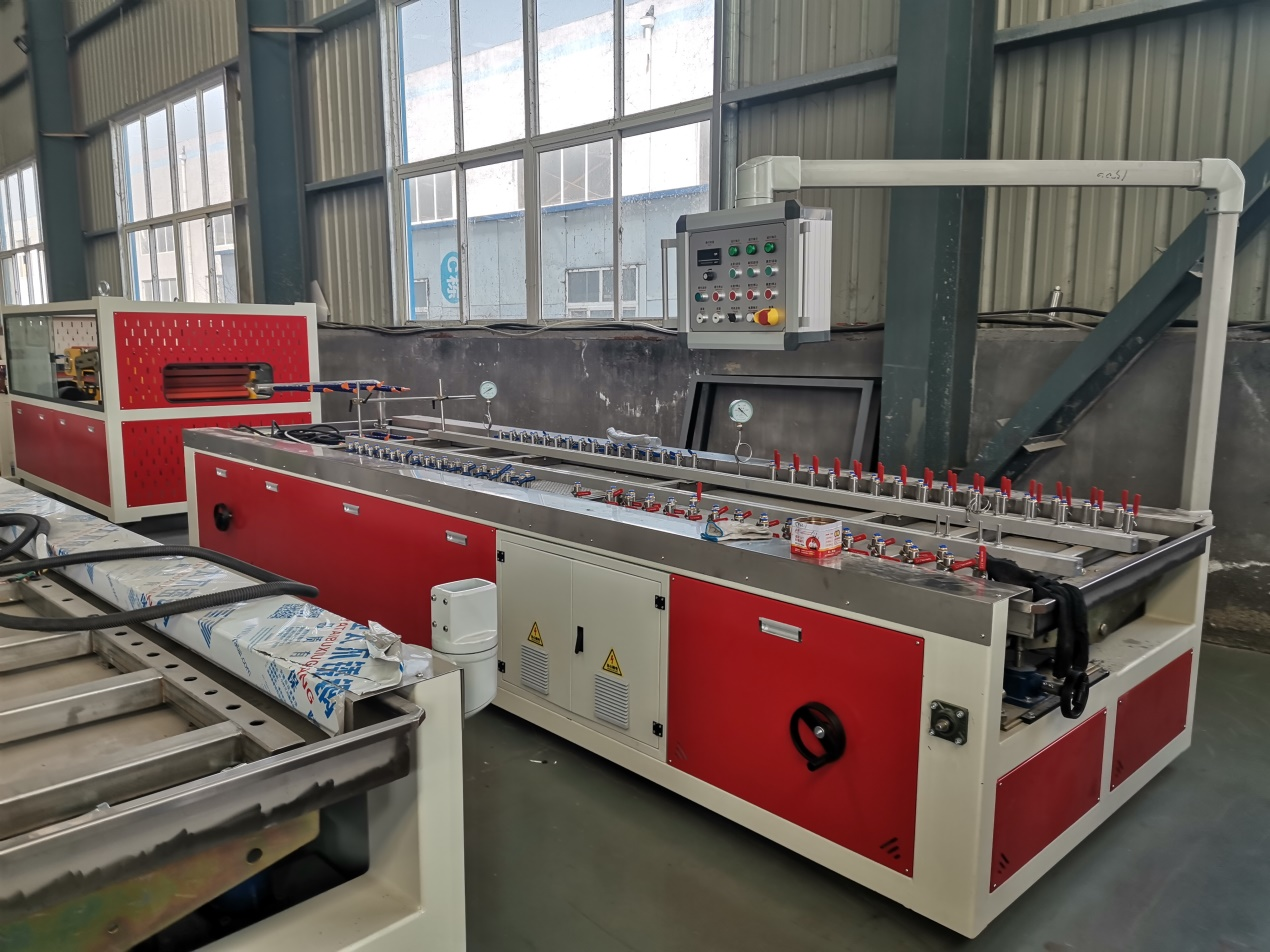

>>Process Flow: Screw Loader →cone / parallel Twin Screw Extruder/Single screw extruder → Co-extrusion machine → Mould → Calibration Table → Haul-off & Cutter →Tripping Table → Final Product Inspecting & Packing
>>Spare parts
| SJZ65/132 Concial twin screw extruder | Qty. | |
| 1 | Mercury temperature meter 0-300℃ | 4 pcs |
| 2 | High-temperature cable | 20m |
| 3 | screw-axial adjusted washer | 1 set |
| 4 | Thermo-couple | 5 pcs |
| 5 | Heater of Joint core | 1 pc |
| 6 | Potentiometer | 1 pc |
| 7 | Oil seal of high-speed shaft | 1 pc |
| YF240 extrusion accessory | Qty. | |
| 1 | ￠8 T-type adapter | 3 pcs |
| 2 | Ball valve model A,B | 5pcs/each |
| 3 | ￠8 Gas pipe | 30m |
| 4 | Limit switch | 2 pcs |
| 5 | Quick-change adapter | 10 pcs |
| 6 | Solenoid valve | 1 pc |
| Other parts | Qty | |
| 1 | Cinqueofoil axial linker | 1 pc |
| 2 | Speed meter for drawing unit | 1 pc |
| 3 | Terminal adapter | 2 pcs |
| 4 | 2-position 5-port solenoid valve | 2 pcs |
| 5 | One-way throttle valve | 2 pcs |
