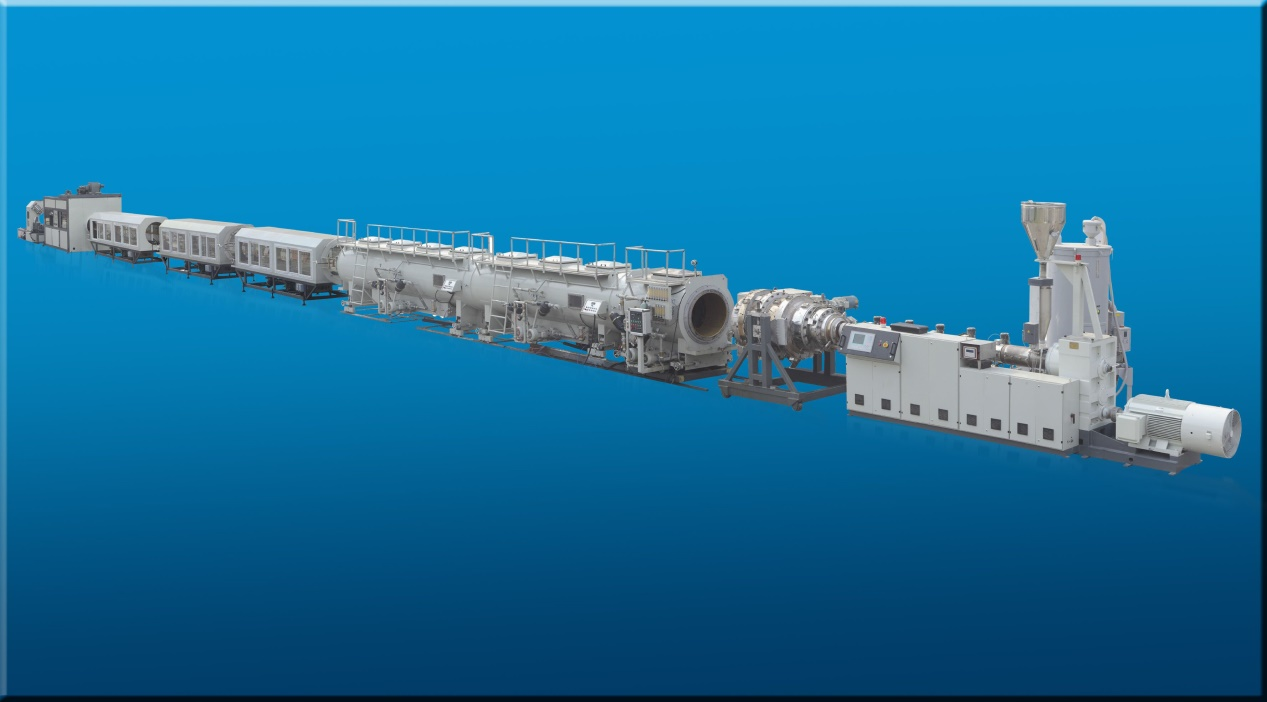

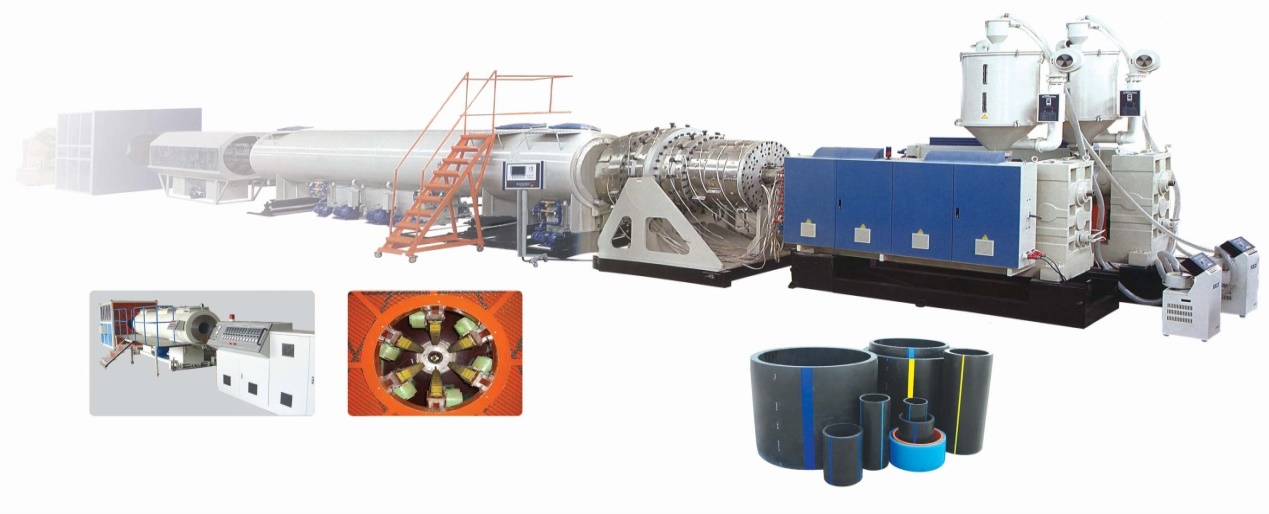

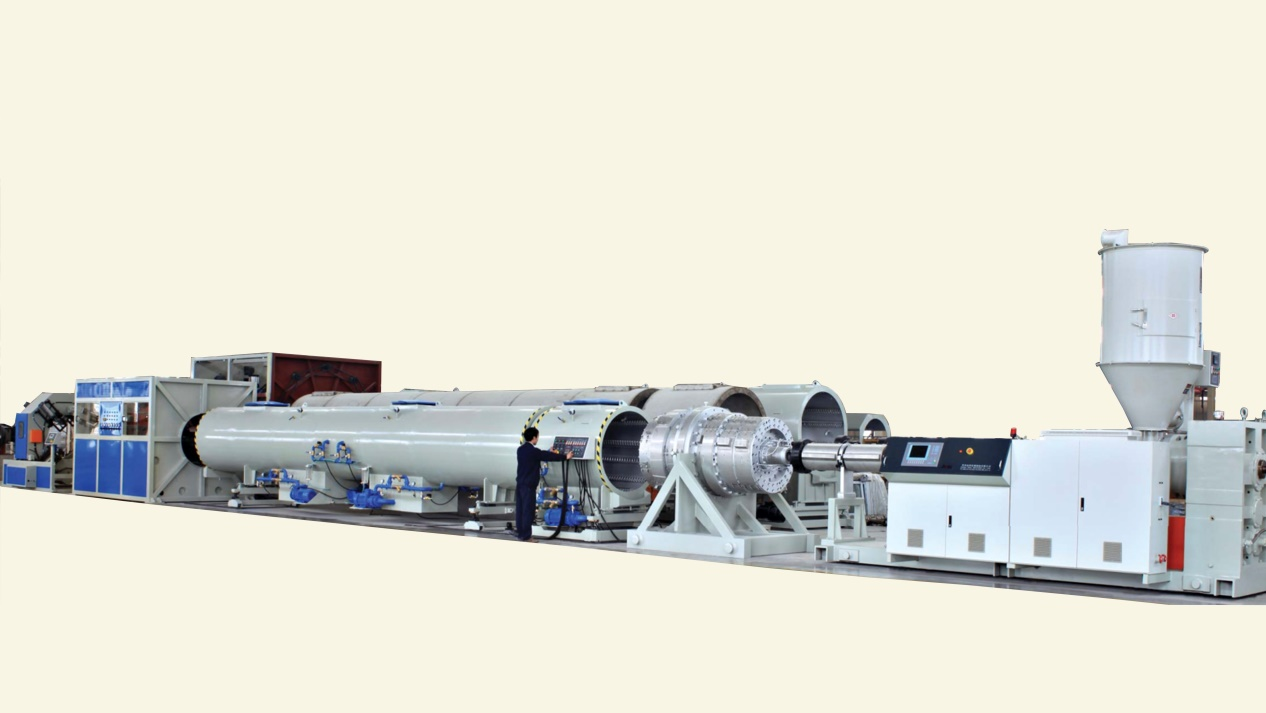

Big size PE pipe extrusion machine
Big size PE pipe extrusion machine/PE tube machine
1.PE Pipe Extrusion Machine is mainly used for producing agricultural irrigation pipes, drainage pipes, gas pipes, water supplying pipes , cable conduit pipes etc.
>>The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the precise of the pipes .
>>Turn key solution can be provided, like laser printer crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
Process Flow: Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single screw extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank → Haul-off → No Dust Cutter → Double/Single disc Winding/ Stacker → Final Product Inspecting &Packing

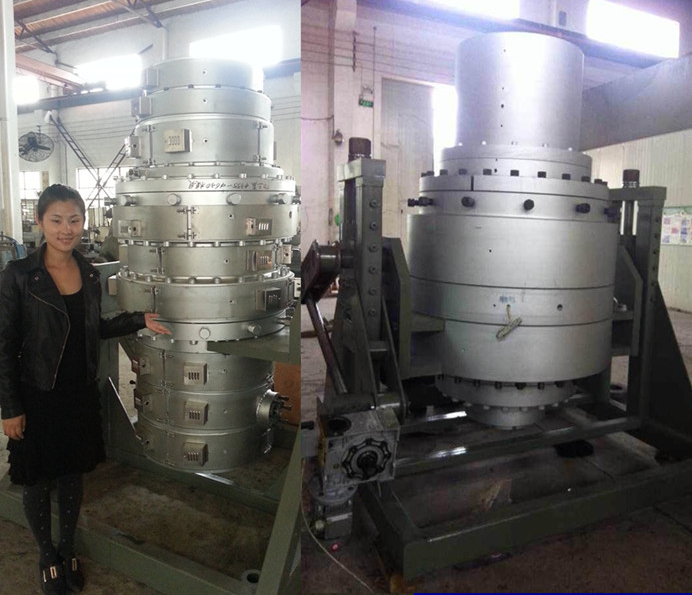

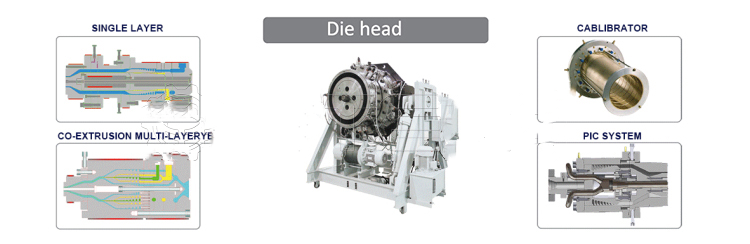

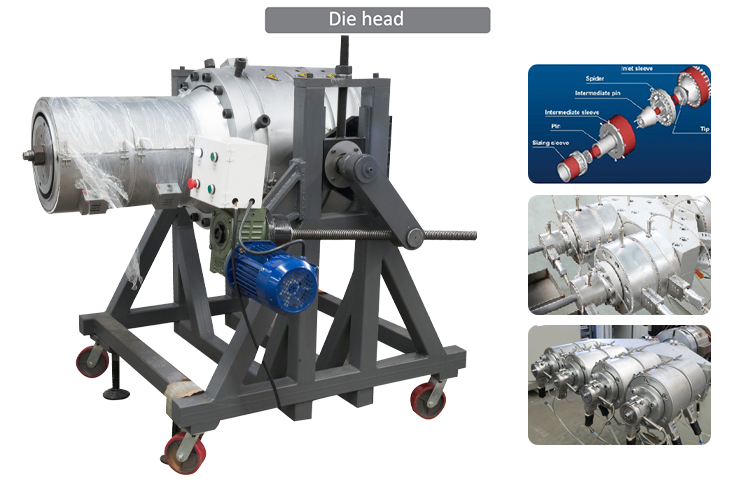

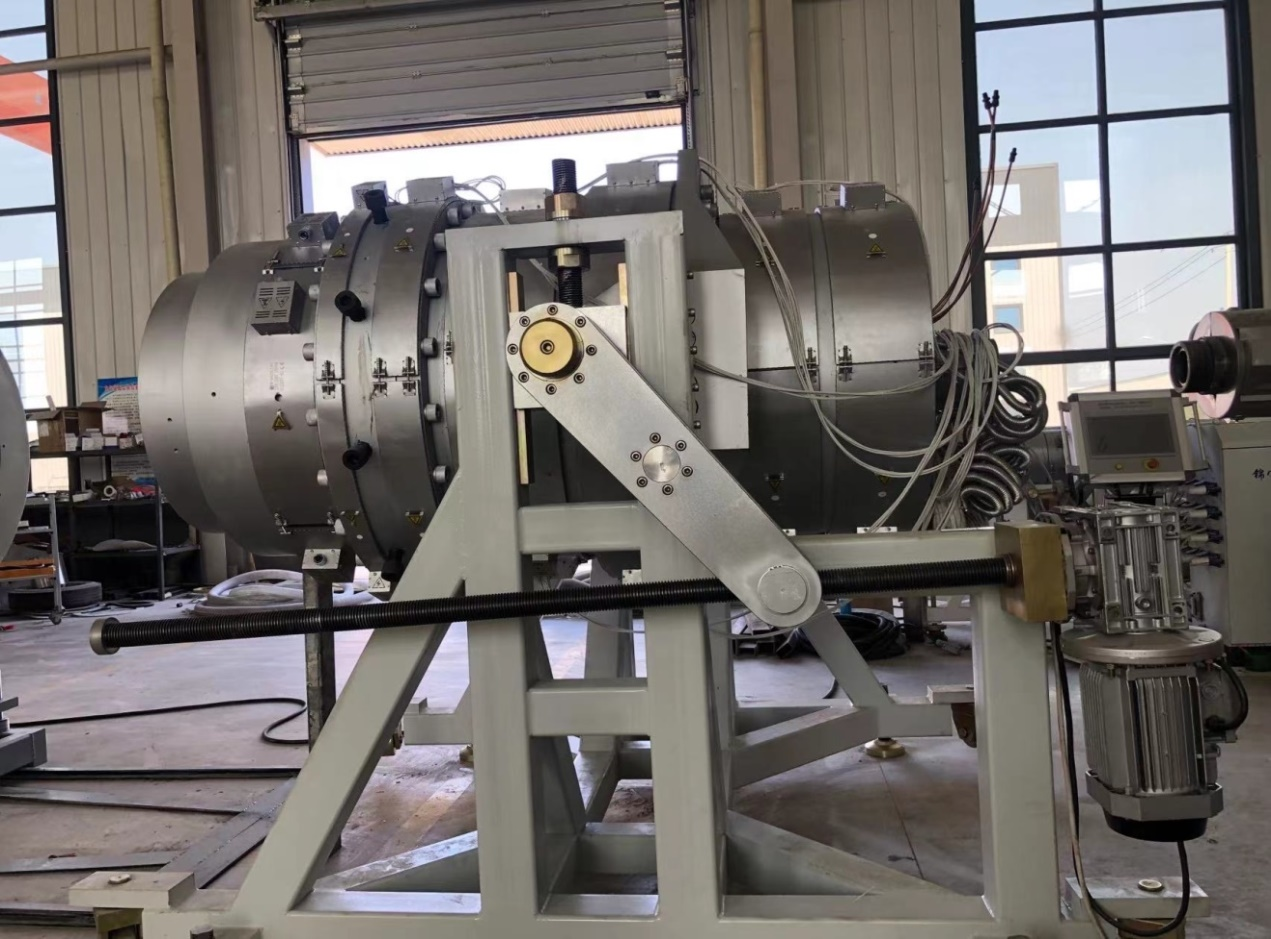

2. PE pipe die head
In recent years, the market of plastic pipe is developing steadily in China. PE,PPR and UPVC pipe play an important role. Wherein the development of PE pipe is most remarkable. PE pipe has a wide range of application. the water supply and gas pipe is one of the largest application market.
We are Using the overall flowing path core support structure and removable locating devices
The channel design has avoided the dead area and retention.
The optimized design of the flowing channel gives it a stronger impact resistance.
Easy to assemble and disassemble.

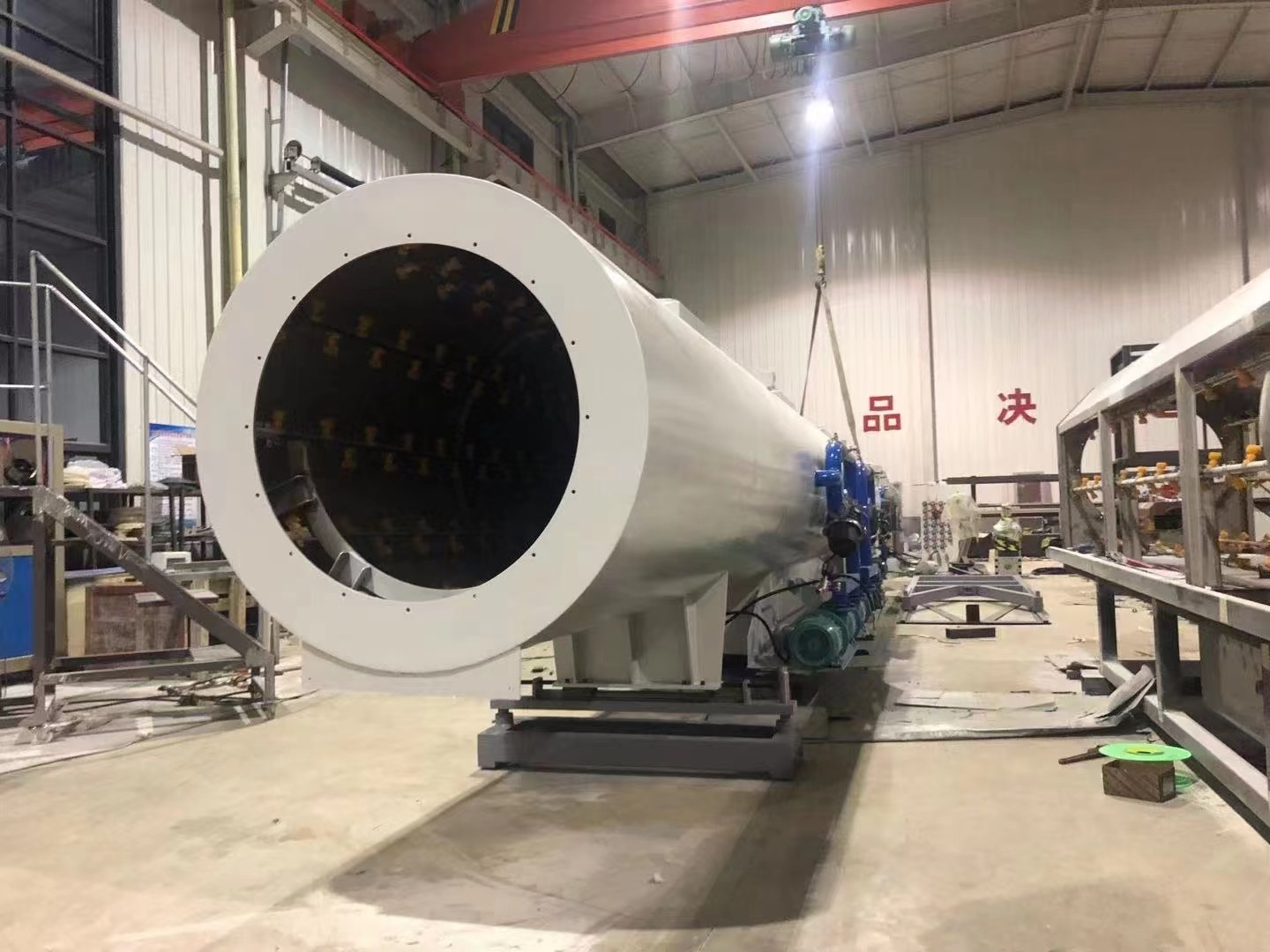

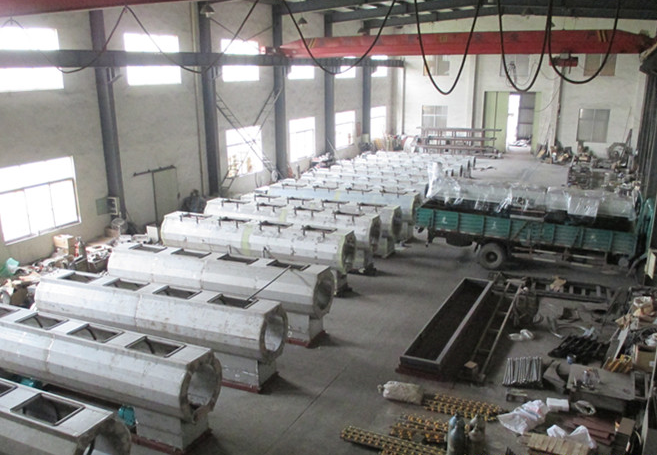

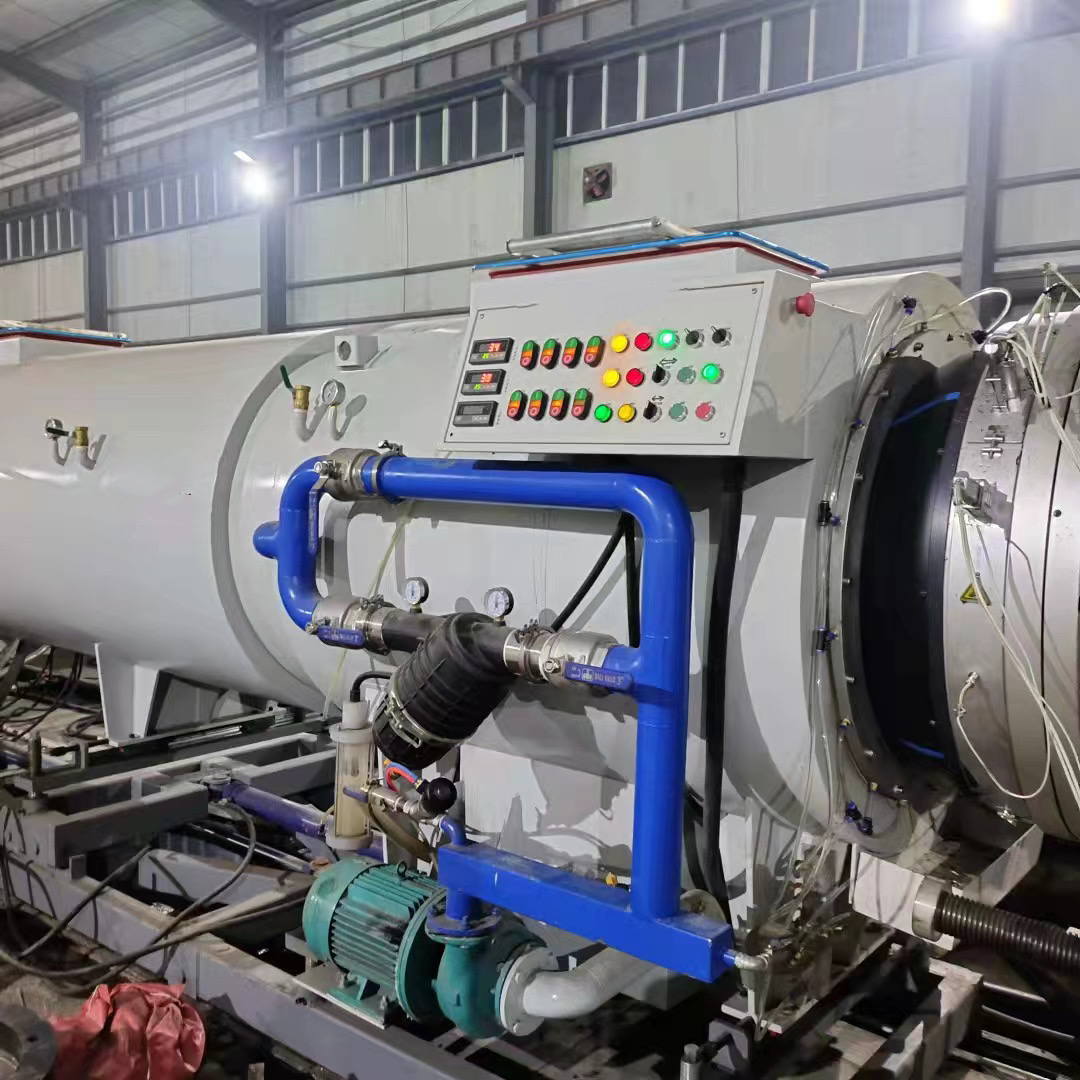

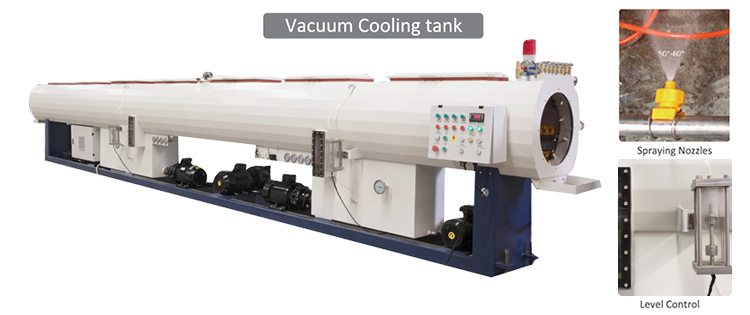

Vacuum calibration tank

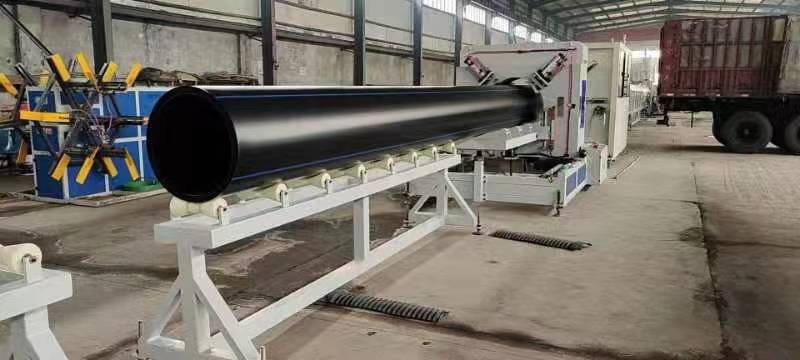

Haul off machine
>>Pipe range from Ø16 to Ø1600 mm
>>High pulling force without lose the shape of the pipes
>>Equipped with 2, 3, 4, 6, 8,10 or 12 caterpillars according to the application
>>Servo motor driving for providing stable torque and running
>>Motorized positioning of the lower caterpillars
>>Simple operation
>>Completely closed protection for maximum safety
>>Chain conveyors with special rubber pads on chains which do no mark on the pipe.
>>Synchronization with the extruder screw speed allows stable production during changing the production speed

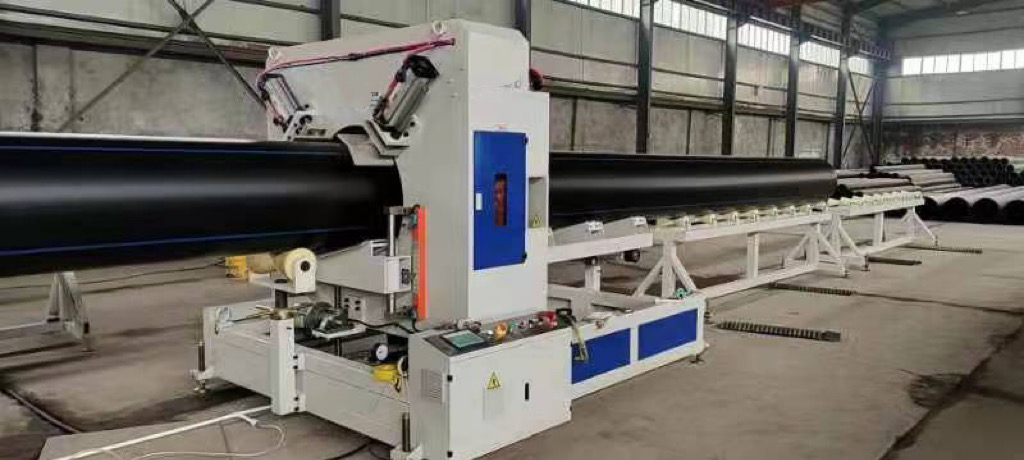

Cutting system
>>Automatic synchronisation with extrusion speed
>>Planetary equipped with disk and milling cutter for cut and chamfering
>>Chip-free equipped with disk blade to ensuring soomth cutting surface without any dust
>>Touch screen control panel
>All movements are motorised and controlled by control panel
>>Pipe blocking with using universal clamping for easy operation
>>Type of the cutting unit is chose depend on pipe
>>Less maintenance needs
>>Completely closed and secured machine for maximum safety
