PVC multi-layer co-extrusion pipe production line
Products Description
DESCRIPTION OF GOODS:
|
Name of Commodity
|
PVC multi-layer pipe line ( three layers)
|
| PVC multi-layer pipe line ( three layers)

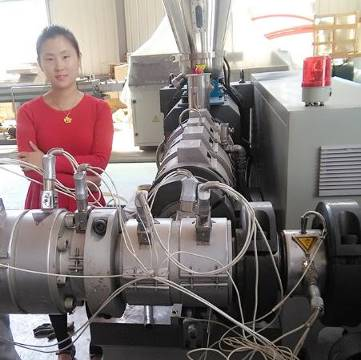

1.Screw loader unit 2.SJSZ65/132 CONICAL TWIN SCREW EXTRUDER WITH servo motor
4.SJ 30/25 Co-extruder 5.pipe diameters 3’’,4’’,5’’,6’’,8’’ 6. 6m vacuum cooling tank 7 .three caterpillar Hauling off unit
|
| PVC multi-layer pipe line ( three layers)
1.Screw loader unit 2.SJSZ80/156 CONICAL TWIN SCREW EXTRUDER WITH servo motor 3.SJSZ65/132 Conical Double Screw Extruder 4.SJ 30/25 Co-extruder 5.pipe diameters 10’’,12’’,14’’,16’’ 6.6m vacuum cooling tank 7.four caterpillar Hauling off unit 8.planetary cutter 9.Stacker |

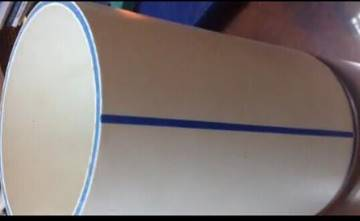

| 3 layers the outside& inner layer are same material of pvc and the middle layer is high filler pvc & recycling pvc , make two making line |
| Auxiliary machine below: |
| SWP 630 PVC pipe crusher
max diameter 400mm ,thickness below 20mm .with knife material Cr12MOV. |
| 500/1000 HOT AND COLD MIXER |
| 600 PVC pulvertizer WITH 55KW MOTOR
|
| 20HP WIND COOLING CHILLER WITH PANASONIC COMPRESSOR |
| SGK250 Full Automatic Belling Machine with U type mould |
Also we can do PPR PE multi-layer co-extrusion pipe line
Our shipment container photo :
